6 - Reusable Module

Recap

In the previous parts of this guide, we've built a dynamic story premise generator for our Infinity Quest project:

Part 1: Created the scene project, imported characters from the original Infinity Quest, and set up basic scene settings.
Part 2: Set up the Scene Loop by extending the default Talemate loop, created an event module to hook into scene initialization, and implemented logic to generate a dynamic introduction that only happens once when the scene is first loaded.
Part 3: Improved the introduction generation by switching to contextual generation, added a reset mechanism for testing, and implemented random theme generation to guide the premise creation and reduce AI bias.
Part 4: Organized our node graph by moving the premise generation logic into a separate submodule, added styling to visually identify agent actions, and improved the module interface.
Part 5: Implemented a multi-agent workflow with staging where:
- Stage 1: Generates a random sci-fi theme
- Stage 2: Uses the Summarizer agent to analyze the theme in depth
- Stage 3: Uses the analysis to guide the creation of an introduction text

At this point, we have a fully functional random premise generator for the Infinity Quest project. However, one of the most powerful features of the Talemate node editor is the ability to create modular, reusable components that can be shared across different scenes and projects.

In this part, we'll transform our premise generator from a scene-specific module into a standalone, reusable component that can be plugged into any scene.

6.0 Backup

We're going to be moving and renaming stuff going forward, so you should backup your project.

Either copy the entire scenes/infinity-quest-dynamic folder somewhere or at least grab the nodes subfolder.

6.1 Starting Point

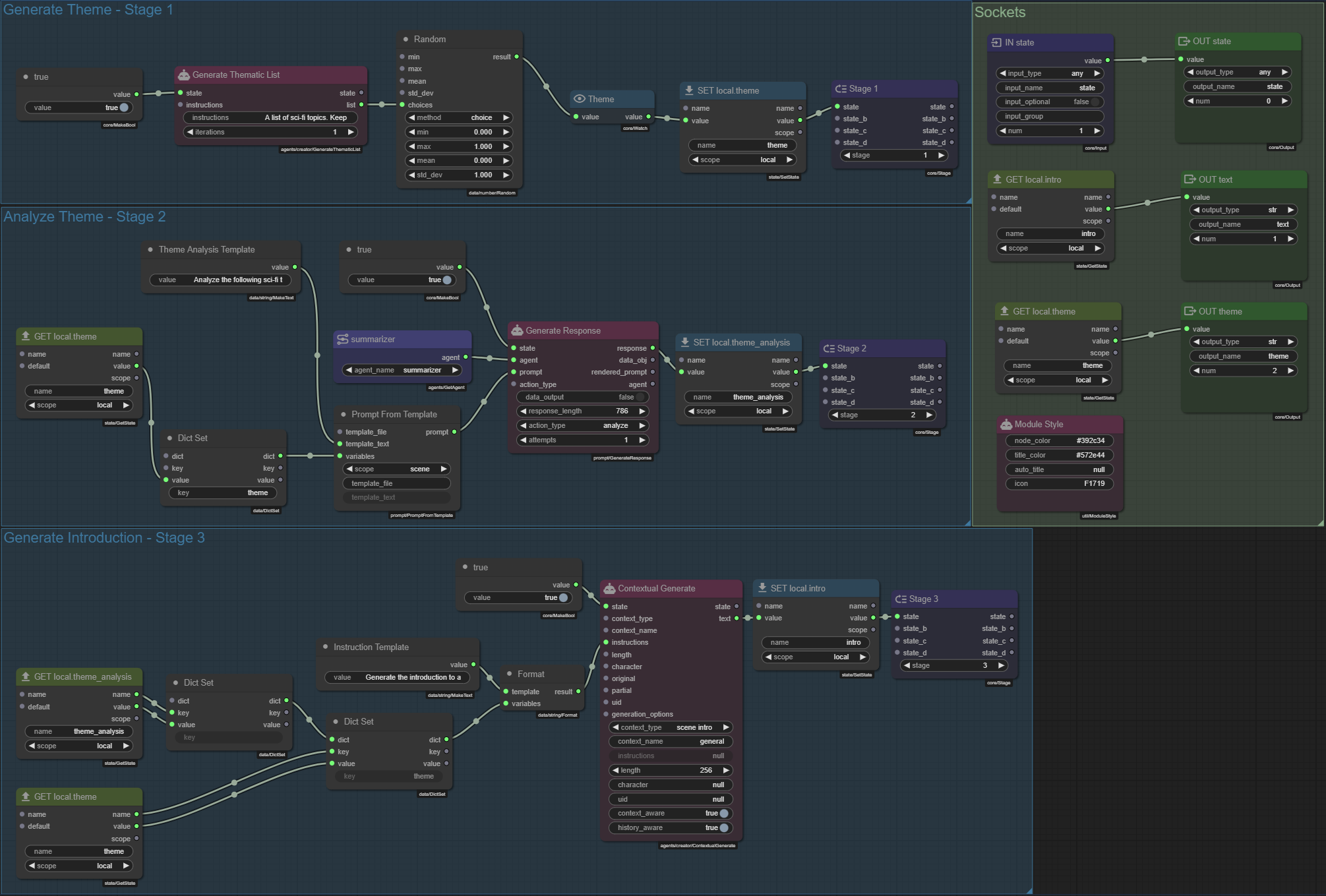

We've done quite a bit of work at this point, so lets quickly go over what we have:

Event Module

This module is responsible for generating the dynamic introduction that only happens once when the scene is first loaded.

Scene Loop Extension

An extension of the default Talemate scene loop where we added an instance of the on-scene-init event module.

Premise Generation Module

This module is responsible for generating the a scene introduction based on random sci-fi theme with the help of the Summarizer agent for additional exploration of the concept.

6.2 Plan

In order to make our premise generator a standalone module, there are a few things we need to consider:

Rename the event module so its less generic as it will be the entry point for the module.
Right now the premise generator has some hardcoded values that make sense for the Infinity Quest project (sci-fi themed, star trek type of story). We need to be able to expose this from the premise module all the way to the scene loop extension as configurable properties.
A toggle for turning analyzation on and off.
Make the module available as a Talemate module, so it can be plugged into any new scene project.

6.1 Renaming the Event Module

Currently there is no good way to rename a module through the node editor. (Still early in the development of the node editor, so this will be added in the future.)

For now the easiest way to rename it is to simply create a copy.

So load the on-scene-init module and create a copy of it.

Open the on-scene-init module

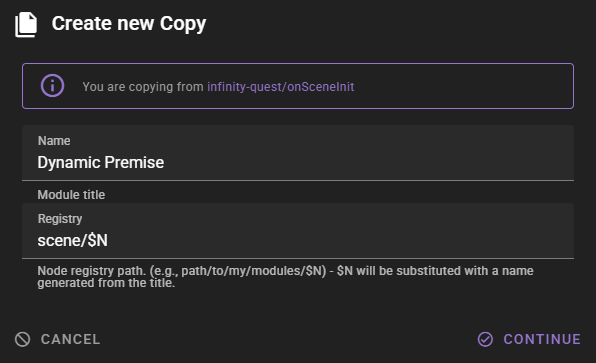

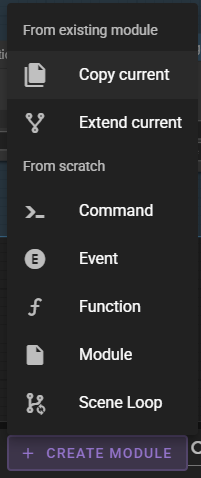

Click the CREATE MODULE button and then Copy current.

In the modal change

Name: Dynamic Premise
Registry: scene/$N

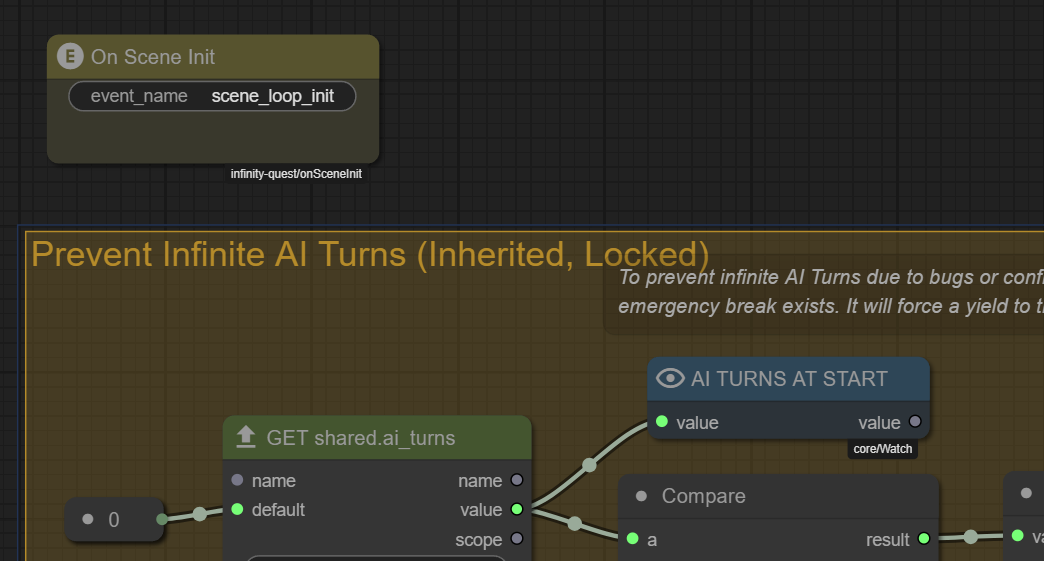

Now load the scene-loop module and replace the On Scene Init module with the new Dynamic Premise module.

Open the scene-loop module

Select the On Scene Init module and press the delete key.

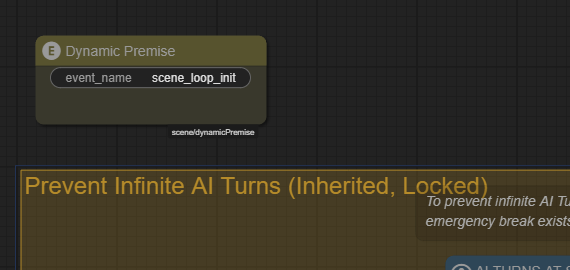

Then add the Dynamic Premise module to the scene loop and set the event_name to scene_loop_init.

Save!

Save the module.

Start the scene loop to test that everything's still working.

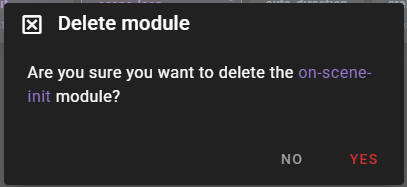

Then find the old on-scene-init module in the Modules library and press the button to delete it. Confirm the action.

6.2 Exposing a Reset Toggle

Open the dynamic-premise module

We have the node chain that lets us reset the premise generation.

It'd be practical for this to be a simple switch on the event node.

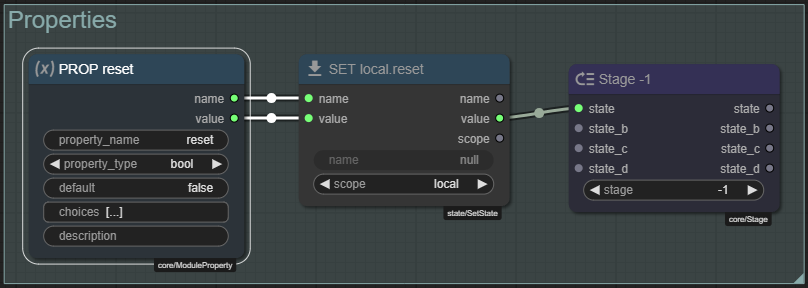

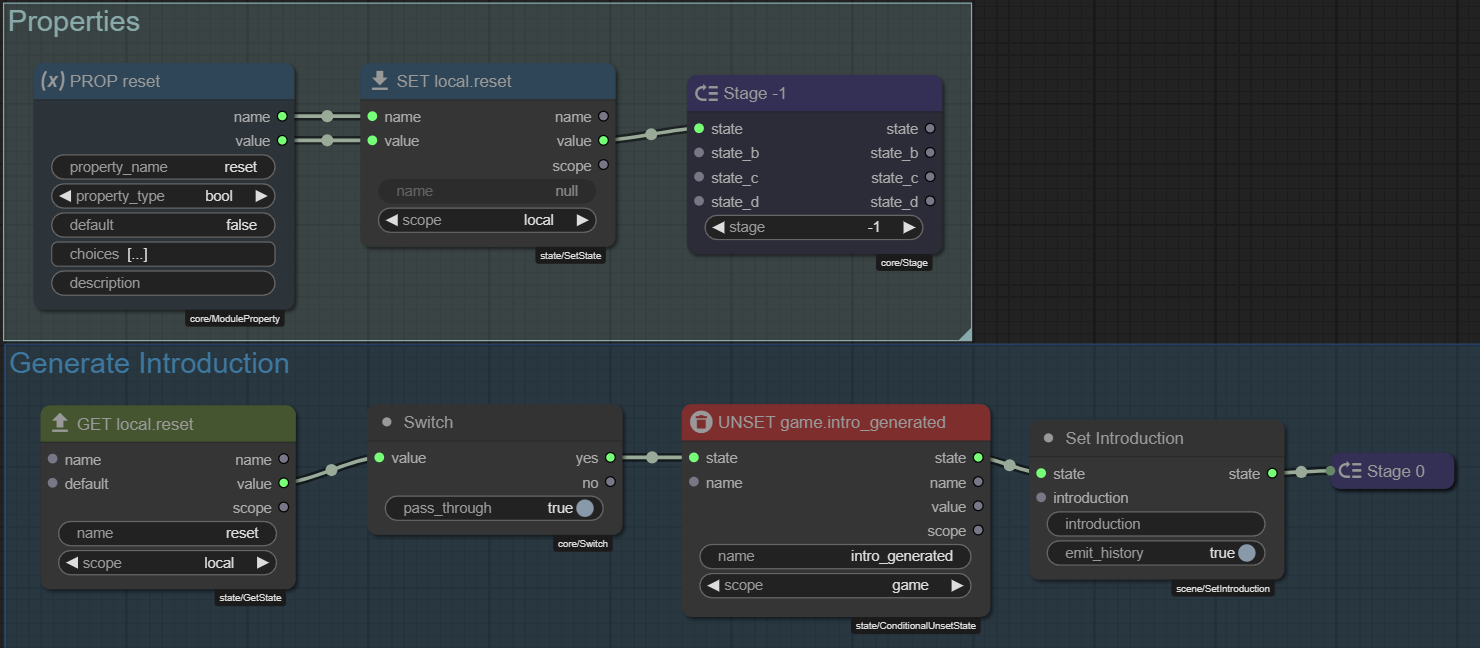

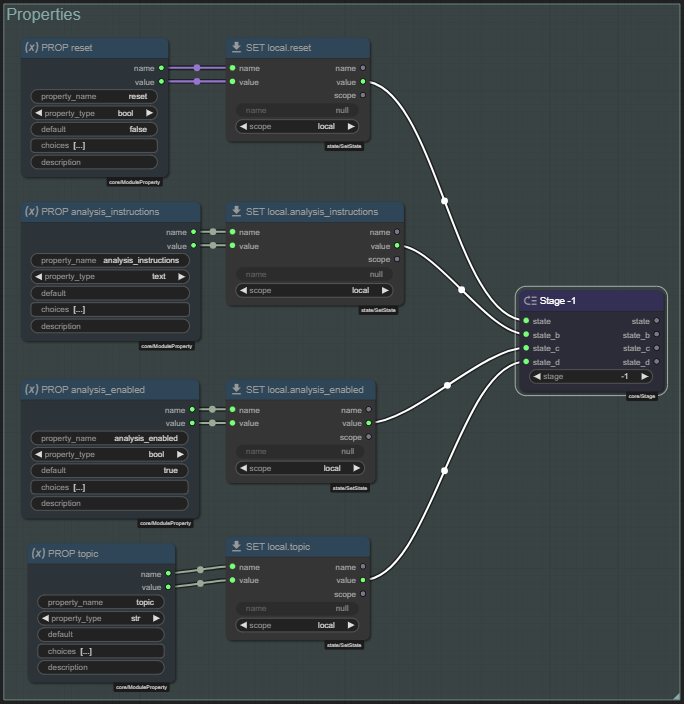

Create a new group somewhere in the module and call it Properties. Color it cyan.

Add the following nodes to the group:

Module Property
Set State
Stage

Connect the nodes as follows:

<Module Property>.name <Set State>.name
<Module Property>.value <Set State>.value
<Set State>.value <Stage>.state

Module Property - Properties

property_name: reset
property_type: bool
default: false

Shift click the title to auto-title it to PROP reset.

Leave the Set State node as is, but change its title to SET local.reset.

Make sure the scope is set to local.

Can't auto-title the Set State node in this case

Since we are plugging the name output of the Module Property node into the name input of the Set State node, auto titling the Set State node currently doesn't work, so do it manually.

In the Stage node set the following:

stage: -1

Shift click the title to auto-title it to Stage -1.

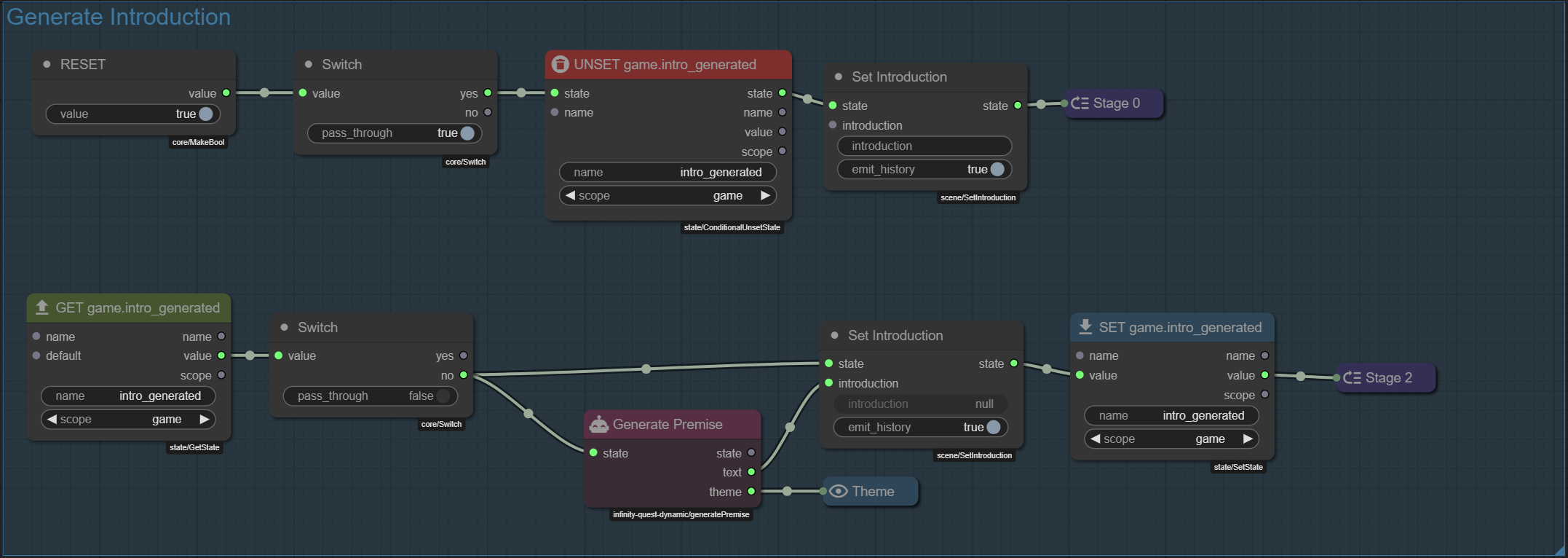

Next go back to the Generate Introduction group and add the following nodes:

Get State

Replace the existing Make Bool (titled RESET) node with the Get State node, connecting it's value output to the Switch.value input.

<Get State>.value <Switch>.value

Get State - Properties

name: reset
scope: local

Shift click the title to auto-title it to GET local.reset.

Save!

Save the module.

Open the scene-loop module

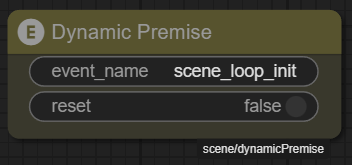

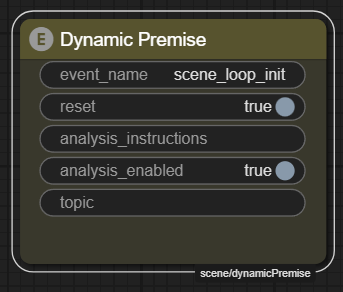

Confirm that the Dynamic Premise node now has a reset property that is a boolean on / off switch.

Turn it on since we will want to test the module still while working on it.

Save!

Save the module.

6.3 Fixing the registry path for the Generate Premise Module

Open the dynamic-premise module

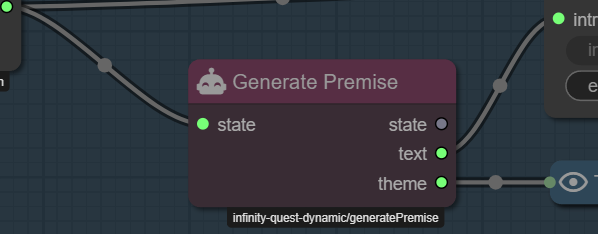

Still in the Dynamic Premise module, looking at the Generate Premise node, it currently exposes no properties to edit.

But, hold on, its path still is registered as infinity-quest-dynamic/generatePremise - that wont do for a reusable module.

So we need to change it.

Open the generate-premise module

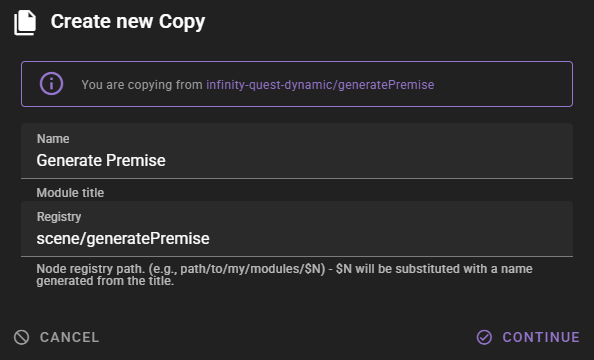

Create a copy of the module. (Same as before)

This time in the modal you can leave the Name as is, and simply replace the infinity-quest-dynamic portion of the Registry with scene so it reads scene/generatePremise.

Click Continue to create the copy.

Since we are keeping the name the same, it will simply replace the existing generate-premise module in the library. However, the dynamic-premise module is still referencing the old generate-premise module.

Dont restart talemate right now

Currently the old reference is still loaded in talemate, so we can load the dynamic-premise module without any issues and remove it. Restarting talemate will cause the old reference to be removed and the dynamic premise module may no longer load.

Open the dynamic-premise module

Delete the old Generate Premise node.

Save!

Save the module.

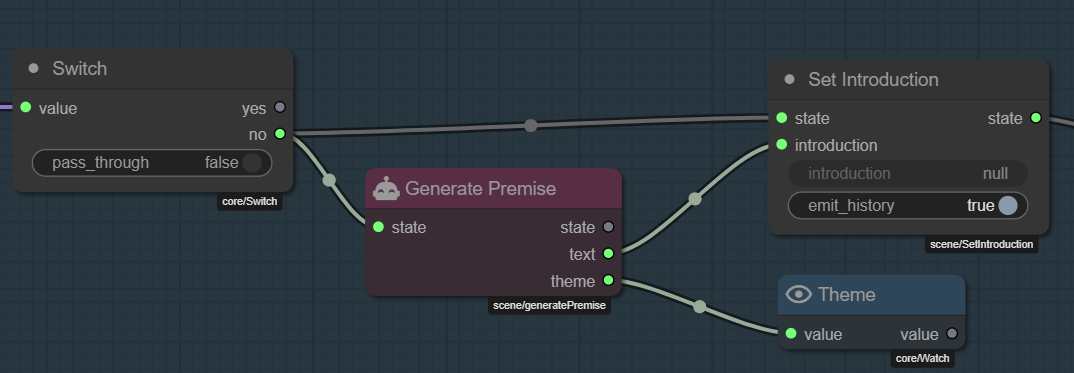

Add the new Generate Premise node and connect it like how the old one was connected.

Save!

Save the module.

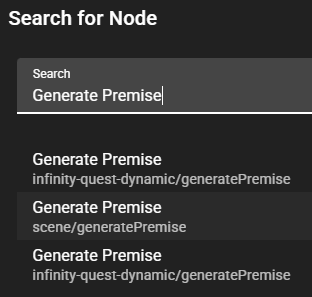

The node editor can be a bit buggy here (v0.30.0)

It may be that when searching for the new node you will find the old one as well (or even multiples of it). Just make sure you select the one that has the path as scene/generatePremise.

The issue will go away the next time talemate is restarted.

6.4 Content control inputs

Open the generate-premise module

Investigating the current properties

Lets look which things we need to expose to allow us to control what kind of themes can be generated.

<Generate Theme>.<Generate Thematic List>.instructions

This controls the overarching theme topic. (sci-fi currenly)

A list of sci-fi topics. Keep each item short (1-3 words).

<Analyze Theme>.<Theme Analysis Template>.value

The jinja2 prompt template for the theme analysis.

Analyze the following sci-fi theme:
{{theme}}

Provide a detailed exploration of this theme, including:
1. Key concepts or technologies involved
2. Potential storylines or conflicts
3. How it might affect the crew of the Starlight Nomad

Your analysis will be used to set up the premise for the next storyline in the Infinity Quest series.

<Generate Introduction>.<Instruction Template>.value

The prompt template for the introduction generation.

Generate the introduction to a random exciting scenario
for the crew of the Starlight Nomad.

The theme is: "{theme}"

Use the following analysis to guide your creation of the scenario premise:

{theme_analysis}

So looking at the above, it seems we will need:

A topic input that is a string.
A analysis_instructions input that is a string

We will also rewrite the templates a bit to make them more flexible.

Input Nodes

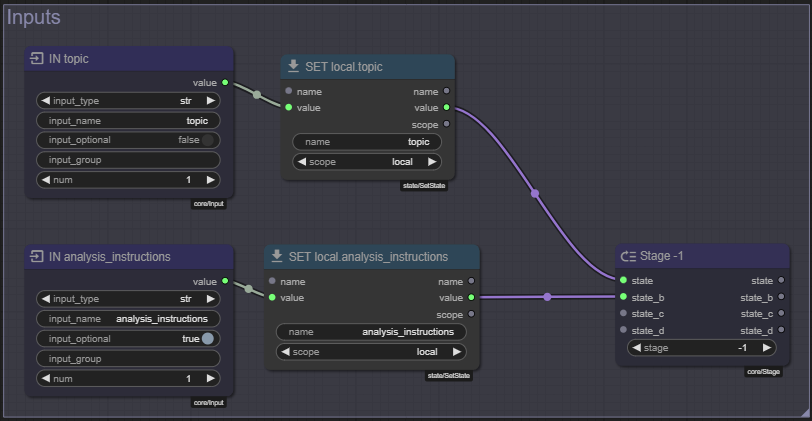

Create a new group somewhere in the module and call it Inputs. Color it blue.

Add the following nodes to the group:

Input Socket (x2)
Set State (x2)
Stage

First Input Socket - Properties

input_type: str
input_name: topic

Shift click the title to auto-title it to IN topic.

Second Input Socket - Properties

input_type: str
input_name: analysis_instructions

Shift click the title to auto-title it to IN analysis_instructions.

First Set State - Properties

name: topic
scope: local

Shift click the title to auto-title it to SET local.topic.

Second Set State - Properties

name: analysis_instructions
scope: local

Shift click the title to auto-title it to SET local.analysis_instructions.

Stage - Properties

stage: -1

Shift click the title to auto-title it to Stage -1.

Connect the nodes as follows:

<IN topic>.value <SET local.topic>.value
<SET local.topic>.value <Stage>.state
<IN analysis_instructions>.value <SET local.analysis_instructions>.value
<SET local.analysis_instructions>.value <Stage>.state_b

Save!

Save the module.

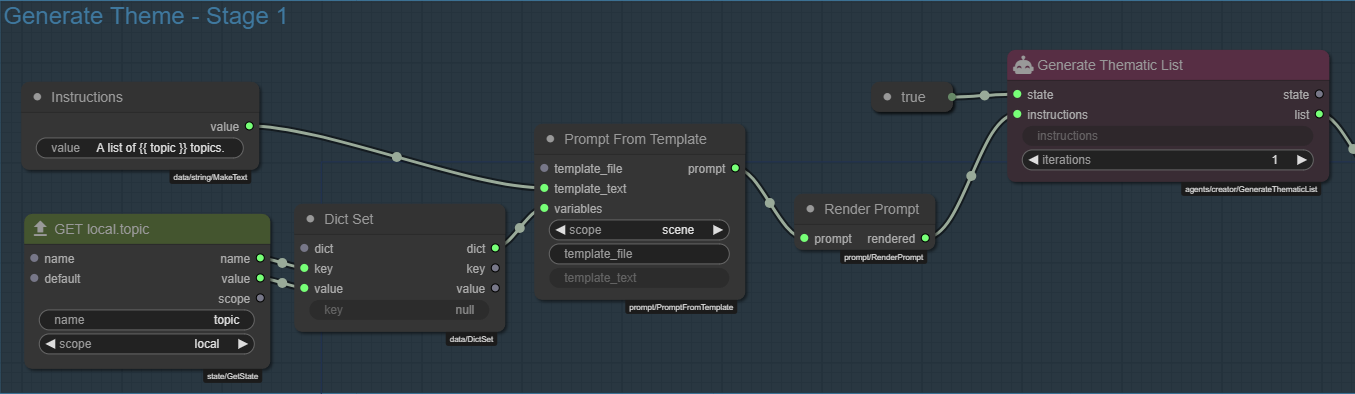

Adjusting the Generate Theme stage

The topic of the theme will be set in local.topic, we need to get this and incorporate it into the Generate Thematic List node. We will also change to use the appropriate prompting nodes to build the prompt. So this will now use a jinja2 template syntax.

In the Generate Theme group add the following nodes:

Get State
Make Text
Prompt from Template
Render Prompt
Dict Set

Get State - Properties

name: topic
scope: local

Shift click the title to auto-title it to GET local.topic.

Make Text - Properties

I am chosing to rewrite the instructions to be a bit more compatible with what a user might type into the topic input.

Its good to keep in mind that a user doesn't know what the entire prompt looks like, so their input may not always be ideal. Of course if you're just using this for yourself, this matters less.

value

A list of topics to use for brain storming. The overarching theme is described as "{{ topic }}". Keep each item short (1-3 words). One of these items will be chosen to bootstrap a new story line.

Retitle to Instructions

Connect the nodes as follows:

<GET local.topic>.value <Dict Set>.value
<GET local.topic>.name <Dict Set>.key
<Instructions>.value <Prompt from Template>.template_text
<Dict Set>.dict <Prompt from Template>.variables
<Prompt from Template>.prompt <Render Prompt>.prompt
<Render Prompt>.rendered <Generate Thematic List>.instructions

Save!

Save the module.

Adjusting the Analyze Theme stage

We will do the same for the Analyze Theme stage, conveniently this is already using Prompt from Template node, but the template itself is about to get a bit of a makeover, so there is a bit of work ahead of us.

However here I also want to include some extra context in the instructions to help improve the quality of the analysis.

In the Analyze Theme group add the following nodes:

Get State (x2)
Dict Set (x2)
Template variables

First Get State - Properties

name: analysis_instructions
scope: local

Shift click the title to auto-title it to GET local.analysis_instructions.

Second Get State - Properties

name: topic
scope: local

Shift click the title to auto-title it to GET local.topic.

Theme Analysis Template

Here I want to add the scene description and the characters description to the template, thinking it will influence the analysis within the context of the story baseline. Knowing the characters will also help the agent come up with potenial storyline suggestions.

Additionally I am deciding to coerce the response to be a bit more concise and to the point. In my testing I found that the agent was getting a bit verbose and even with a 1024 token limit it was getting cut off.

value

<|SECTION:STORY BASELINE|>
{{ scene.description }}

<|SECTION:PROTAGONISTS|>
{% for character in scene.characters %}
### {{ character.name }}
{{ character.description }}
{% endfor %}

<|SECTION:CONTEXT OF YOUR TASK|>
A topic description of "{{ topic }}" was given and a random theme was picked to bootstrap a new storyline: "{{ theme }}".

<|SECTION:TASK|>
Analyze the theme "{{ theme }}" in the context of the topic "{{ topic }}".

Provide a brief exploration of this theme, including:
1. Key concepts or ideas involved and how they fit the context
2. Potential storylines or conflicts
3. How it might affect the protagonists of the story

{% if analysis_instructions %}
{{ analysis_instructions }}
{% endif %}

Keep your analysis concise and to the point.

Your analysis will be used to set up the premise for the next storyline in the `{{ scene.name }}` series.

Template variables

Its the Template variables node that is responsible for adding variables like scene to the template scope.

Prompt Templating

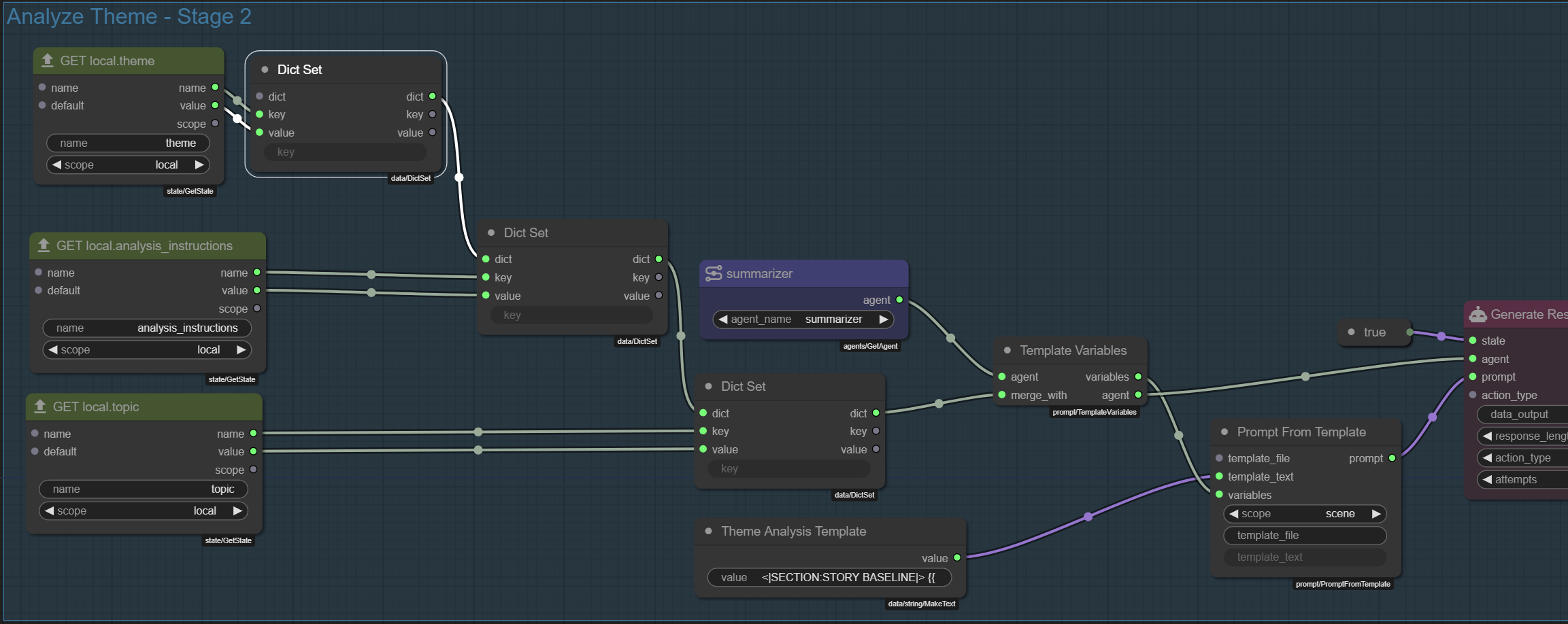

Connect the nodes as follows:

<GET local.analysis_instructions>.value <Dict Set>.value
<GET local.analysis_instructions>.name <Dict Set>.key

<GET local.topic>.value <Dict Set>.value
<GET local.topic>.name <Dict Set>.key

Chain all three Dict Set nodes together (the 2 new ones plus the 1 existing one), with each connecting to the dict input of the next and the last one connecting to the merge_with input of the Template variables node.

Then connect the remaining nodes as follows:

<summarizer>.agent <Template variables>.agent
<Template variables>.agent <Generate Response>.agent
<Template variables>.variables <Prompt From Template>.variables

Save!

Save the module.

Adjusting the Generate Introduction stage

This i will leave as is for now, but i will update the Instruction Template text to remove the infinity quest reference.

Generate the introduction to a random exciting story-line.

The theme is: "{theme}"

Use the following analysis to guide your creation of the scenario premise:

{theme_analysis}

Save!

Save the module.

6.5 - A switch for analysis

My general approach is that i want to be able to turn off long running queries to the agents.

So lets do this for the analysis.

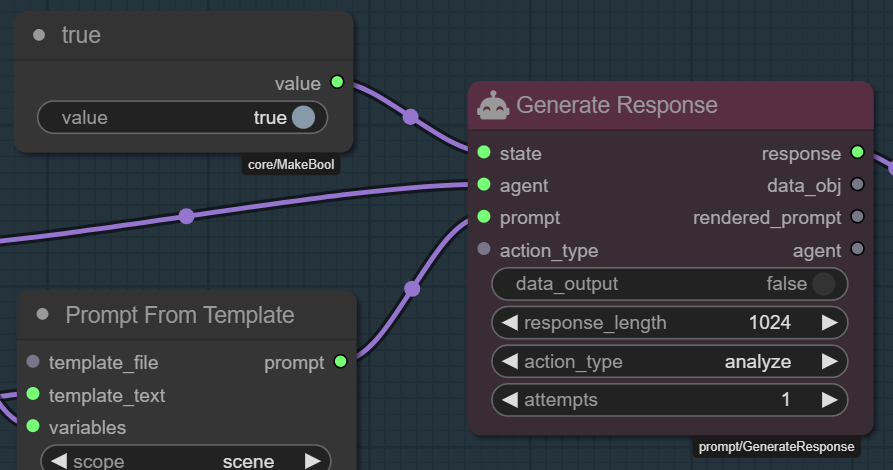

The obvious splace to add this is the state input of the Generate Response node in the Analyze Theme group.

It is currently connected to a Make Bool node that is set to true.

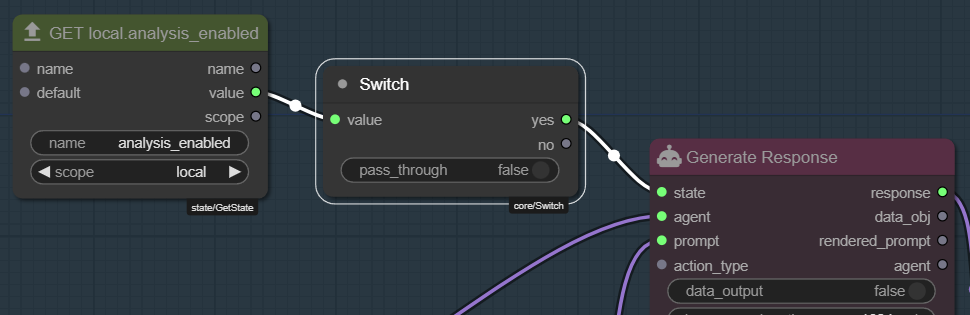

To build a switch add the following nodes to the Analyze Theme group:

Get State
Switch

Get State - Properties

name: analysis_enabled
scope: local

Shift click the title to auto-title it to GET local.analysis_enabled.

Switch - Properties

pass_through: false

Connect the nodes as follows:

<GET local.analysis_enabled>.value <Switch>.value
<Switch>.yes <Generate Response>.state

Delete the Make Bool node that was connected to the state input of the Generate Response node.

Save!

Save the module.

Next we need to add an Input node to expose this new analysis_enabled property.

Add the following nodes to the Inputs group:

Input Socket
As Bool
Set State

Input Socket - Properties

input_type: bool
input_name: analysis_enabled

Shift click the title to auto-title it to IN analysis_enabled.

As Bool - Properties

default: true

Set State - Properties

name: analysis_enabled
scope: local

Shift click the title to auto-title it to SET local.analysis_enabled.

Connect the nodes as follows:

<IN analysis_enabled>.value <As Bool>.value
<As Bool>.value <SET local.analysis_enabled>.value
<SET local.analysis_enabled>.value <Stage>.state_c

Save!

Save the module.

6.6 - Propagating through Dynamic Premise

Open the dynamic-premise module

Good news! Looks like the Generate Premise node is exposing the 3 new socket inputs we added to the generate-premise module.

If the Generate Premise node looks a bit glitchy

If you notice that our Generate Premise node looks a bit glitchy, where its size is not correct, causing the new widgets to overflow, simply resize it to fix this.

But, we need those properties to be propagated one more level, so someone can simply add the Dynamic Premise module to their scene loop and then be able to edit everything from there.

Easy enough, just do the now familiar flow of adding three Module Property nodes, Set State nodes to the existing Properties group and connect them to the stage.

analysis_enabled: bool - default true
topic: str - default blank string
analysis_instructions: text - default blank string

Save!

Save the module.

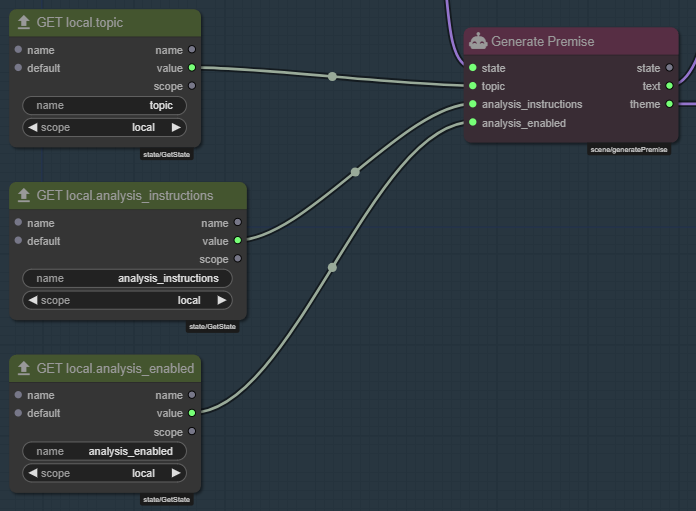

Now add three Get State nodes to the Generate Introduction group and connect them to the topic, analysis_instructions and analysis_enabled inputs of the Generate Premise node.

Save!

Save the module.

6.7 - Testing

Open the scene-loop module

Confirm the Dynamic Premise node now is exposing:

reset - a boolean toggle to reset the premise generation (useful for testing)
analysis_instructions - a text input to control the analysis instructions
analysis_enabled - a boolean toggle to control whether the analysis is enabled (default true)
topic - a string input to control the topic of the theme

Fill in a topic.

sci-fi with eldritch and cosmic horror elements

Save!

Save the module.

Start the scene loop to test that everything's still working.

6.8 - Making it a Talemate Module

Currently there is no UX for making a module a Talemate module.

While we work on the tooling for this, here is how to do it manually.

In the talemate directory find the scenes directory, and there find the folder for this project.

So if you followed the example to the point, it should be scenes/infinity-quest-dynamic.

In there find the nodes directory.

It should have three files in it:

dynamic-premise.json
generate-premise.json
scene-loop.json

Copy both the dynamic-premise.json and generate-premise.json files to the templates/modules directory. (relative to the talemate folder)

Note

If the modules directory does not exist, create it.

Restart talemate.

To test that this worked, create a new scene project.

Filter the Modules library for premise and both should be available. (albeit locked for editing)

Extend the scene loop so we can edit it. (Remember how we did this in part 1)

Search for the Dynamic Premise node and add it to the scene loop.

Looking good!

Keep editing through the original infinity-quest-dynamic scene

Since the Infinity Quest Dynamic scene still has its own copies of these modules, you can come back to it and make changes.

The load order of modules assures that modules living with the scene take precedence over the ones in the templates/modules directory.

So a good workflow is to make and test changes in a dedicated scene project and whenever you are happy with it copy the new modules to the templates/modules directory.

This works as long as the module title and registry values are the same.
