Functions

Talemate allows you to encapsulate a collection of nodes into a callable function.
Functions behave much like Python functions – they can receive typed arguments, return a value, and be reused from anywhere in your graphs (or even be exposed to the AI through FOCAL).
This page explains the two flavours of functions that Talemate offers and shows how they integrate with the AI function-calling workflow.

Documentation is a work in progress

Documentation is an ongoing effort and some parts are more complete than others, with some missing entirely. Thanks for your patience, its being worked on!

See the Node Editor - Crash Course tutorial for an extensive introduction to the node editor.

Inline functions

Inline functions are created inside an existing graph. They are ideal when the logic is only relevant to that one graph but you still want to keep the patch tidy or you need to delegate work to the AI.

The nodes involved are located in the core/functions/ category:

Node Purpose
Argument Declares a function parameter. The name and type properties map directly to the argument that will be visible when the function is called.
Return Emits the return value and stops execution of the enclosing graph.
Define Function Marks a sub-graph as the body of a function and stores it under the given name. The node has one input called nodes – connect it to any output socket of the last node in the body (typically the Return node).
Get Function Retrieves the function wrapper by name. The wrapper appears on the fn output socket.
Call Function Executes the wrapper and returns the result on result. It has an optional args input/property for supplying a dict of arguments.
Call For Each Utility node that iterates over a list and calls the supplied function once per item.

Example – doubling every number in a list

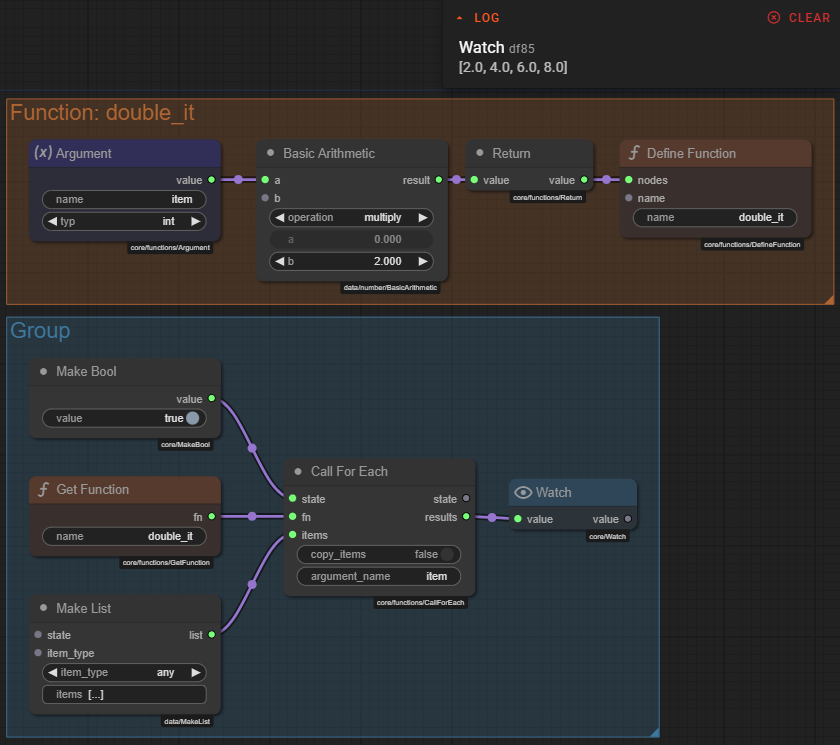

The screenshot below (functions-0001.png) shows a complete inline-function setup that doubles each element of a list:

Inline Function Example

Make List

A Make List node creates the list [1, 2, 3, 4] (you set this in its items property). Its list output is what we want to process.

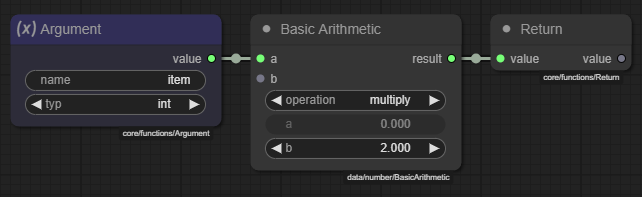

Function body

Build the function that doubles a single number:

  • Argument node named item – represents the incoming number.
  • Basic Arithmetic – multiplies item × 2.
  • Return node – outputs the result.

Define Function

Give it a name like double_number and connect its nodes input to the Return node (the tail of the body). This wraps the sub-graph as a callable function.

Get Function

Elsewhere drop a Get Function node, set its name to double_number, and take the fn output.

Call For Each

Feed the original list into items and the function wrapper into fn. Set argument_name to item. The node iterates through [1, 2, 3, 4], calls the function for each, and outputs a list [2, 4, 6, 8] on results.

And that's it: you now have a reusable, inline function that can be called any number of times without cluttering your main graph.

Because inline functions live in the parent graph they inherit its state. They are therefore able to read & write shared state.data values or even call StopGraphExecution, just like any other node.

Note

If you need the same function in multiple graphs, convert it into a Function Module instead of repeating the Define/Get pattern in every graph.

Function modules

A Function Module is a self-contained node module you create with the editor and register under the core type Function. After creation it appears in the Module Library like any other node and exposes a single output called fn.

When should I use a Function Module?

In most cases a regular module is all you need—regular modules already behave like self-contained nodes that you can drop into a graph to run reusable logic.
Create a Function module only when:

  1. You want to expose the module to the AI through FOCAL function calling.
  2. You need to iteratively call the module from other graphs using Call Function / Call For Each.

For everything else, a normal module keeps things simpler.

Creating a Function Module

  1. In the Module Library (bottom of the editor) click Create Module and choose Function. In the dialog that pops up enter a title and set the registry path (you can use $N as a placeholder for an auto-generated name).
  2. Add Argument and Return nodes exactly like with inline functions. The module itself doesn't need Define/Get nodes – the editor automatically exposes the fn output.
  3. (Optional) Add Module Property nodes if you want the caller to configure behaviour.
  4. Save the module.

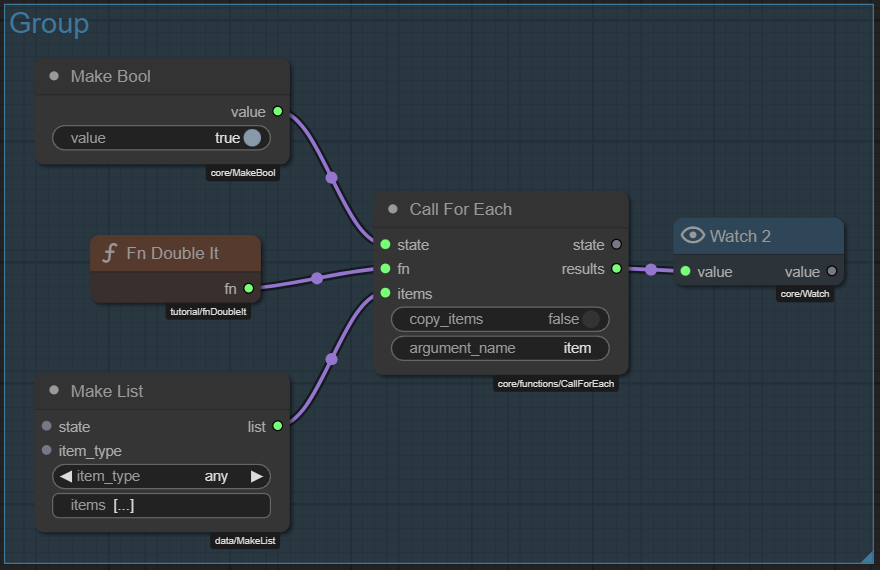

In the FN Double it Function module: Function Module Example

Using a Function Module

  1. Add the node to the graph via the right-click context menu or the node search.
  2. Connect its fn output to Call Function (or to a FOCAL Callback).
  3. Pass arguments normally and receive the return value.

Under the hood the module is instantiated as a FunctionWrapper, the same class used by inline functions. All life-cycle semantics (argument discovery, shared state, StopGraphExecution, etc.) therefore match 1-to-1.

Function Module Example

Utility nodes

Besides the core nodes there are a few helpers that make working with functions easier:

  • Call For Each – Iterate over a list and invoke the function for every item. Property argument_name sets the parameter that receives the current element.
  • Breakpoint – Pause execution when hit so you can inspect the current GraphState (useful while developing a complex function).
  • Error Handler – Catch exceptions and delegate them to a user-defined function for graceful recovery.
  • Coallesce - Allows you to combine multiple branches into a single function definition for inline functions.

AI function calling using FOCAL nodes

Talemate's FOCAL system allows an LLM to dynamically decide which of your functions to call, with rich structured arguments.

What is FOCAL?

FOCAL (Function Orchestration and Creative Argument Layer) is Talemate's prompt-orchestration layer: it first lets the language model propose one or more structured function calls, then executes those calls and optionally loops back with results. This keeps creative text generation and deterministic logic neatly separated.

FOCAL vs. built-in AI tool calls

FOCAL is not based on proprietary "AI tool call" APIs. Instead it works by showing the model clear JSON examples plus a schema description for every callback you expose. Any model that can emit valid JSON and follow instructions can therefore use it. The upside is broad compatibility; the downside is that less capable models may struggle to produce well-formed calls or adhere to the schema, especially for complex argument types.

The integration is provided by the focal/ node set:

Node Purpose
AI Function Callback Wraps a FunctionWrapper so it can be exposed to the AI. The node scans the function for Argument nodes and builds a fully-typed focal.Callback description.
AI Function Calling Sends a prompt template to the selected agent, telling it which callbacks it may call. Returns a list of focal.Call objects and the raw LLM response.
Process AI Function Call Extracts a single call from the list, exposing its name, arguments, result, and called flag.

Typical workflow

  1. Create (or reuse) a function via the methods above.
  2. Add an AI Function Callback node, connect the function wrapper to its fn input, and set the name that the AI should use.
  3. Collect one or more AI Function Callback nodes into an AI Function Calling node along with a prompt template.
    – Add any template vars you need via the input socket or property.
    – Optionally raise max_calls or retries if the AI needs more attempts.
  4. The calls output yields a list of focal.Call objects. Feed them into Process AI Function Call to inspect the result or route execution based on what was invoked.

Example – answering a question with FOCAL

The next two screenshots show a complete, runnable setup that asks the model a question and records the answer via a callback.

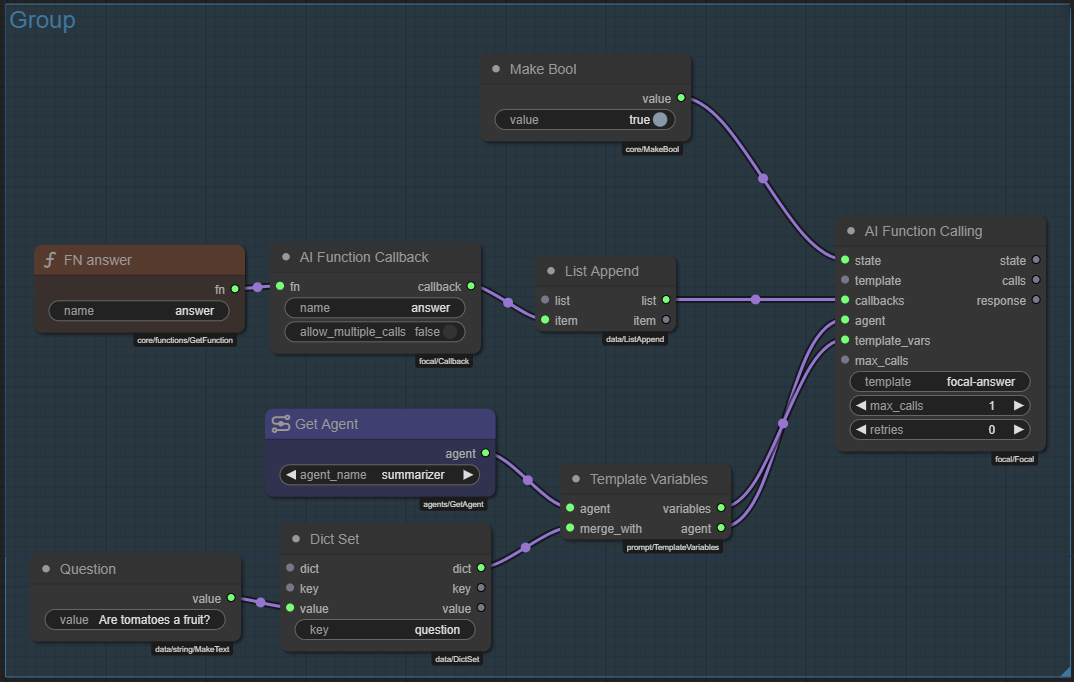

Focal Example – overview

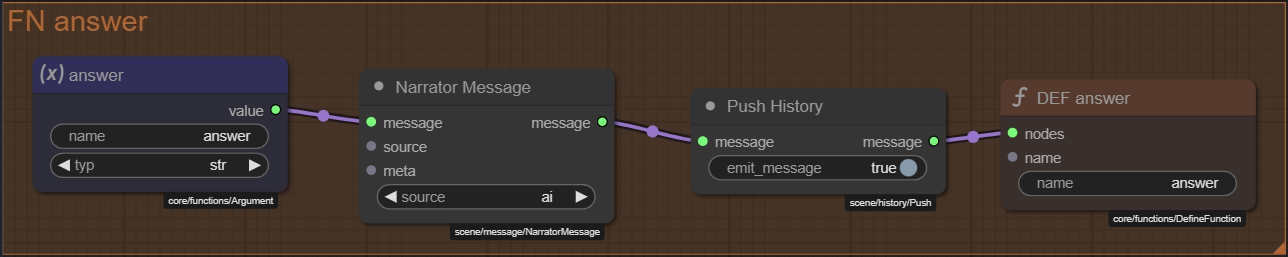

Focal Example – callback details

Step-by-step:

  1. Define the callback function

  2. Inside the orange group we build a small inline function called answer: an Argument node (answer) → a Narrator Message node that turns the text into a chat message → Push History to add it to the scene log → Return.

  3. A Define Function node (DEF answer) wraps this graph, while Get Function (FN answer) lets other nodes retrieve it.

  4. Expose it to the AI

  5. An AI Function Callback node takes the wrapper from Get Function. Its name property is set to answer, matching the parameter in our prompt template.

  6. Compose the prompt

  7. The Jinja2 template focal-answer.jinja2 (see below) prints out FOCAL instructions followed by the actual question ({question}).

  8. A Template Variables node merges the user's question into a dict and feeds it to AI Function Calling.

  9. AI Function Calling

  10. template: focal-answer

  11. callbacks: the list coming from List Append which currently contains just our answer callback.
  12. agent: whatever agent you want to use (e.g. summarizer).

  13. state: enable the node – here a Make Bool just feeds true so the state socket is live.

  14. Process AI Function Call (not shown in the screenshots but usually added afterwards) can inspect the returned calls list to confirm the function was invoked and examine the arguments.

Jinja template excerpt (focal-answer.jinja2):

The template file should live in the current scene's template directory (e.g. scenes/my-scene/templates/focal-answer.jinja2).

<|SECTION:FUNCTION CALLING INSTRUCTIONS|>
{{ focal.render_instructions() }}

{{
    focal.callbacks.answer.render(
        "Give your answer to the posed question.",
        answer="Your brief answer to the question. (1-4 sentences)",
        examples=[
          {"answer": "Paris is the capital of France."},
          {"answer": "It states that force equals mass times acceleration (F = m × a)."},
          {"answer": "H2O is the chemical symbol for water."}
        ]
    )
}}
<|SECTION:TASK|>
Answer the following question: {{question}}

Use the `answer` function to submit the answer.

When the prompt reaches the LLM, it sees explicit JSON examples for the answer callback. The model responds with something like:

{
  "name": "answer",
  "arguments": {
    "answer": "Yes – botanically, tomatoes are fruits because they develop from the ovary of a flower."
  }
}

AI Function Calling captures this, executes the answer function (which writes to scene history), and the result appears in calls for further processing.

Tips

  • The Argument type property is honoured by FOCAL. Setting it to int, bool, etc. improves JSON extraction accuracy.
  • If a function may be called more than once in a single prompt response, set allow_multiple_calls on the AI Function Callback node.
